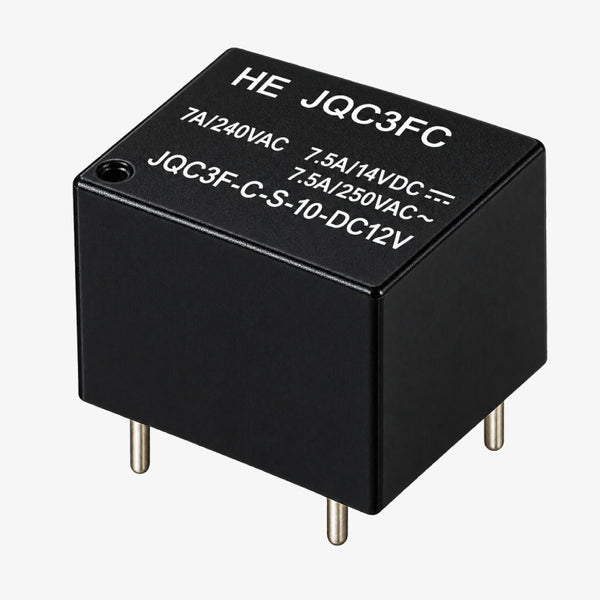

JQC3F-C-S-DC12V 7V 7A SPDT Power Relay

JQC3F-C-S-DC12V-7V 7A SPDT Power Relay is a compact PCB mount electromagnetic relay designed for reliable switching of AC and DC loads in automation systems, household appliances, power supplies, communication equipment, electronic instruments, and industrial control circuits. Featuring a 12V DC coil, SPDT (1 Form C) contact configuration, and a 7A switching capacity, it offers low coil power consumption, fast switching performance, excellent insulation, and long mechanical life in a miniature package.Features:7A Switching Capacity12V DC Coil VoltageSPDT (1 Form C) Contact ConfigurationLow Coil Power ConsumptionCompact PCB Mount DesignSilver Alloy ContactsFast Operate and Release TimeHigh Dielectric StrengthLong Mechanical and Electrical LifePCB Through-Hole MountingSuitable for Home Appliances and Industrial ControlRoHS CompliantSpecifications:ParameterValueProduct TypePCB Power RelayModelJQC3F-C-S-DC12V-7VContact ArrangementSPDT (1 Form C)Contact Rating7A @ 250VAC / 28VDCCoil Voltage12V DCCoil Power0.36WCoil Resistance400Ω ±10%Pick-Up Voltage≤9V DCDrop-Out Voltage≥1.2V DCMaximum Coil Voltage15.6V DCContact MaterialSilver AlloyContact Resistance≤100mΩ (Initial)Maximum Switching Current7AMaximum Switching Voltage250VAC / 28VDCMaximum Switching Power1750VA / 196WOperate Time≤10msRelease Time≤5msInsulation Resistance≥100MΩ @ 500VDCDielectric Strength (Coil to Contacts)1500VAC for 1 MinuteDielectric Strength (Open Contacts)750VAC for 1 MinuteMechanical Life10,000,000 OperationsElectrical Life100,000 OperationsMounting TypePCB Through HoleConstructionSealedOperating Temperature-40°C to +85°CDimensions19 × 15.2 × 15.5mm Also Check These Out:12V 8 Channel Relay Module with Optocoupler16 Channel Relay 12V Module4-Channel 12V Relay Module with OptocouplerPCB For 1 Channel Relay Module with Optocoupler InputPackage Includes:1 x JQC3F-C-S-DC12V-7V 7A SPDT Power Relay

INR 28 · In stock
