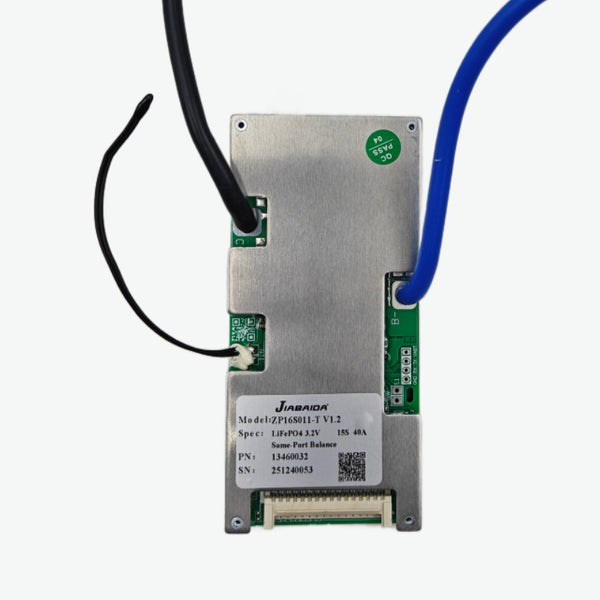

Jiabaida (JBD) LiFePo4 15S 48V 40A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 15S 48V 40A BMS is a smart Battery Management System built on the ZP16S011 hardware, engineered for 15-cell LiFePo4 battery packs. It offers reliable protection against overcharge, over-discharge, overcurrent, and short circuits while providing passive balancing for maintaining cell voltage uniformity. With a continuous discharge current of 40A, it is suitable for applications such as electric bikes, energy storage systems, and portable power solutions.Jiabaida (JBD) LiFePo4 15S 48V 40A BMS Features:40A continuous discharge capability for moderate-load applicationsPassive balancing to improve battery pack performance and lifespanComprehensive protection circuitry for voltage and current controlBuilt on ZP16S011 hardware for stable operationIdeal for medium-power LiFePo4 battery systemsJiabaida (JBD) LiFePo4 15S 48V 40A BMS Specification:SpecificationValueModelZP16S011Supported Cells15S (LiFePo4)Nominal Voltage (V)48VCharge Voltage (V)54.75VCharge Current (A)20AContinuous Discharge Current (A)40ABalance Current (mA)30 ±5Overcharge Detect Voltage (V)3.75 ±0.05Overcharge Release Voltage (V)3.55 ±0.05Over Discharge Detect Voltage (V)2.20 ±0.1Over Discharge Release Voltage (V)2.50 ±0.1Operating Temperature (°C)-20 to 70Dimensions (mm)115 x 54 x 12mm Package Includes:1 x Jiabaida (JBD) LiFePo4 15S 48V 40A Battery Management System - BMS Protection Board
