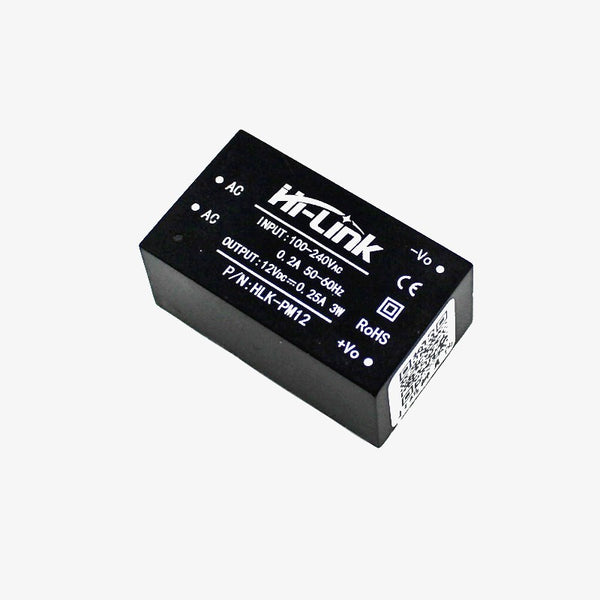

Hi Link 12V 3W Switch Power Supply Module (HLK PM12)

HLK PM12 12V 3W Switch Power Supply Module is designed in such a way that is convenient to use in PCB Board with compact space management features. It is a plastic enclosed PCB mounted isolated step-down power supply module. This Hi link can supply 12V DC with a power rating of 3W.Since it is an AC to DC switching power supply module, the input voltage ranges from 90V AC – 230V AC makes it an universal input power supply module. It has very low temperature rise due to its high efficiency, high reliability and higher level of isolation. It is much simpler to use as well as due to SMPS design, the voltage fluctuation does not reflect in the output of this module.HLK-PM12 Hi Link Pinout: Specifications: -Output voltage and Wattage: 12V 3WUniversal input range (AC: 90 ~ 264V)Voltage Regulation : ±0.2 %Load Regulation: ±0.5 %Input Low Voltage Efficiency: Vin=110VAc, Output full-load: 69%Input High Voltage Efficiency: Vin=220VAc, output full-load: 70%Maximum input current: <0.2AInput current surge : <10AUltra-thin, ultra-small.Meets UL, CE requirements.Low ripple and low noise.Output overload and short circuit protection.High efficiency, high power density.The product is designed to meet the requirements of EMC and Safety Test.Low power consumption, environmental protection, no-load loss <0.1Hi link HLK-PM12 Dimension and footprint:ApplicationsIoT DevicesPower BoardMini Power Supply designIndustrial Automations Example Projects on HLK-PM12:Review of HLK Module: Load and Ripple TestingAdditional Resources:HLK-PM12 Datasheet Package Contains1x HLK-PM12 module

INR 182 · Out of stock
