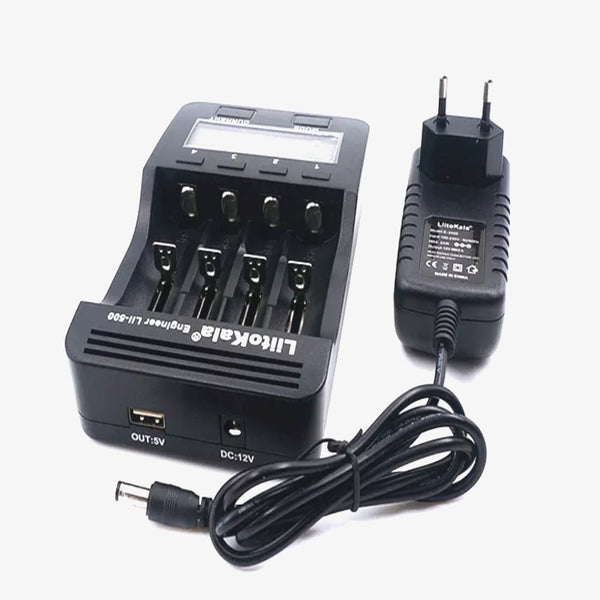

Lithium Battery Capacity Tester Liito Kala (Lii-500) for 18650,14500, 26650 Li-ion and NiMh Cells

LiitoKala Lii-500 Smart Battery Charger – SpecificationsInput / Output:DC Input Voltage: 12V / 2.0AUSB Output: 5V / 1000mADischarge Current: 250mA / 500mATermination Method: Intelligent voltage monitoringCharging Current:Li-ion Charging Voltage: 4.2VCharging Current Options: 300mA / 500mA / 700mA / 1000mA (Selectable for each slot)Ni-MH Charging Voltage: 1.48VCharging Current Options: 300mA / 500mA / 700mA / 1000mACompatible Battery Types:Li-ion: 18650, 26650, 14500, 16340, 17500, 18500, 10440, etc.Ni-MH/Ni-CD: AA, AAA, A, SC, CDisplay Features:Large LCD screen displaying: Voltage (V), Current (mA), Charging Time (H), Capacity (mAh), Internal Resistance (mR), Independent display for each slot.Operating Modes:Charge Mode: Individual slot operation with user-selectable currentQuick Test Mode: Rapid two-step battery capacity detection (full charge + check)Normal Test Mode: Standard three-step capacity detection (charge → discharge → recharge)Protection Features:Overcharge & over-discharge protectionShort circuit protectionTemperature monitoring0V activation function for deeply discharged batteriesAutomatic detection of bad or reverse-installed batteriesDelta V and Zero Delta V for Ni-MH/Ni-CD battery terminationIncompatible battery detection (1.65V - 2.2V range can't be charged)Mechanical:Dimensions: 162 mm (L) × 96 mm (W) × 36 mm (H)Color: BlackBuild: Durable ABS plasticButtons & Operation: 6 Keys:MODE: Switch between charging/test modesCURRENT: Select charging current1234: View individual slot dataHold the MODE button for 3 seconds to switch between charge, quick test, and normal test modes. Use slot buttons (1-4) to navigate and monitor each battery's status independently.Package Includes:1 x LiitoKala Lii-500 Smart Battery Charger + 12V 2A Adapter
