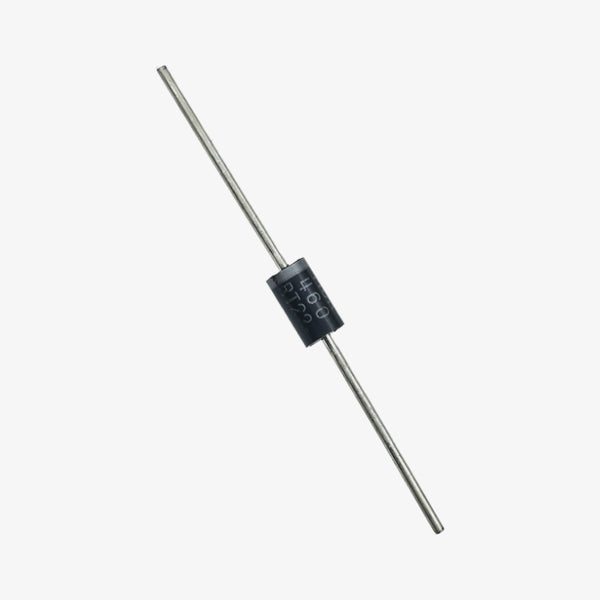

MUR460 Ultra Fast Rectifier Diode 4A

The MUR460 Ultra Fast Rectifier Diode 4A is designed for high-speed AC to DC rectification with strong surge capability and low leakage performance. Its diffused junction and fast recovery characteristics make it ideal for power supplies, high-frequency inverters, and industrial rectification circuits.CLICK HERE FOR DATASHEETFeatures:Hermetically sealed construction for durabilitySuper fast reverse recovery for high-frequency applicationsHigh surge current capability for demanding loadsLow leakage current with axial lead DO-201AD packageCathode marked for easy polarity identificationSpecifications:Maximum Repetitive Peak Reverse Voltage (VRRM): 600 VMaximum Average Forward Rectified Current (IF(AV)): 4.0 APeak Forward Surge Current (IFSM): 125 AForward Voltage (VF) at 4 A: 1.30 VPeak Reverse Current (IR) at 25°C: 5 µAPeak Reverse Current (IR) at 125°C: 50 µAReverse Recovery Time (trr): 50 nsThermal Resistance Junction to Ambient (RθJA): 28 °C/WThermal Resistance Junction to Lead (RθJL): 10 °C/WOperating Junction Temperature Range (TJ): -55°C to +150°CStorage Temperature Range (TSTG): -55°C to +150°CPackage Includes:1 × MUR460 Ultra Fast Rectifier Diode 4A

INR 11 · In stock
