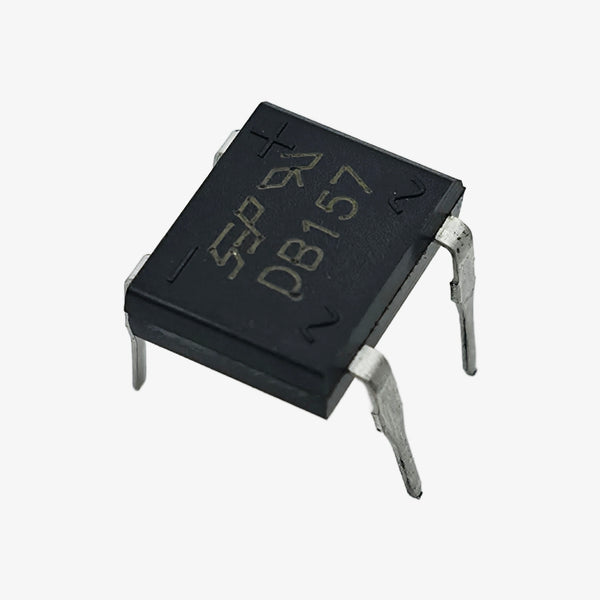

DB157 1.5A 1000V Single Phase Bridge Rectifier IC - 4-Pin DIP Package

The DB157 Bridge Rectifier 1.5A is a reliable through-hole rectifier designed for AC to DC conversion in low-power applications. Built with a glass-passivated die and molded plastic body, it ensures excellent thermal stability and surge resistance. Ideal for adapters, control systems, and general power circuits requiring robust rectification.CLICK HERE FOR DATASHEETFeatures:Glass-passivated die construction for improved performanceLow forward voltage drop for efficient power conversionHigh surge current capability up to 50AUL 94V-0 flame-retardant molded plastic caseLeads solderable per MIL-STD-202, Method 208Specifications:Average Rectified Output Current (IO): 1.5APeak Repetitive Reverse Voltage (VRRM): 1000VDC Blocking Voltage (VDC): 1000VRMS Reverse Voltage (VR(RMS)): 700VPeak Forward Surge Current (IFSM): 50A (8.3ms single half sine wave)Forward Voltage (VFM): 1.1VReverse Current (IRM) at 25°C: 5µAReverse Current (IRM) at 125°C: 500µATypical Junction Capacitance (Cj): 25pFThermal Resistance Junction to Ambient (RθJA): 40°C/WThermal Resistance Junction to Lead (RθJL): 15°C/WOperating Junction Temperature (TJ): -65°C to +150°CStorage Temperature Range (TSTG): -65°C to +150°CPackage Includes:1 × DB157 1.5A 1000V Single Phase Bridge Rectifier Module - 4-Pin DIP Package

INR 5 · In stock
