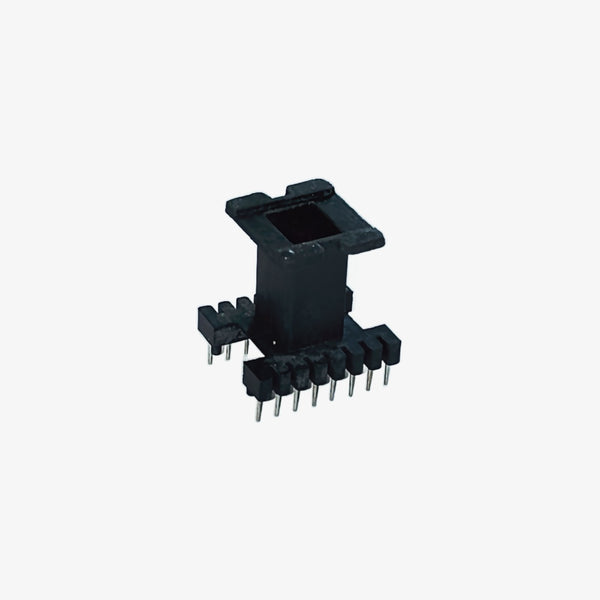

EE42 Transformer Vertical Bobbin 16 Pin

The EE42 Transformer Vertical Bobbin with 16 legs is designed for use with EE42 ferrite cores in high-frequency transformers and inductors. This bobbin provides an efficient winding structure for transformers, enabling easy assembly and improved space utilization. Its vertical design allows for better alignment in compact designs, making it suitable for applications in power supplies, converters, and other high-frequency circuits.Features:Vertical bobbin design for optimized transformer assembly16-leg configuration for efficient winding and enhanced electrical performanceDurable plastic construction to withstand mechanical and thermal stressCompatible with EE42 ferrite cores for high-frequency applicationsSimplifies winding process, improving productivity in transformer manufacturingApplications:Switched-mode power supplies (SMPS)High-frequency transformers and inductorsPower converters and invertersIndustrial power electronicsCustom transformer manufacturingSpecifications:Bobbin Type: EE42Leg Count: 16Mounting Style: VerticalMaterial: High-quality plasticCore Compatibility: EE42 ferrite cores

INR 16 · In stock
