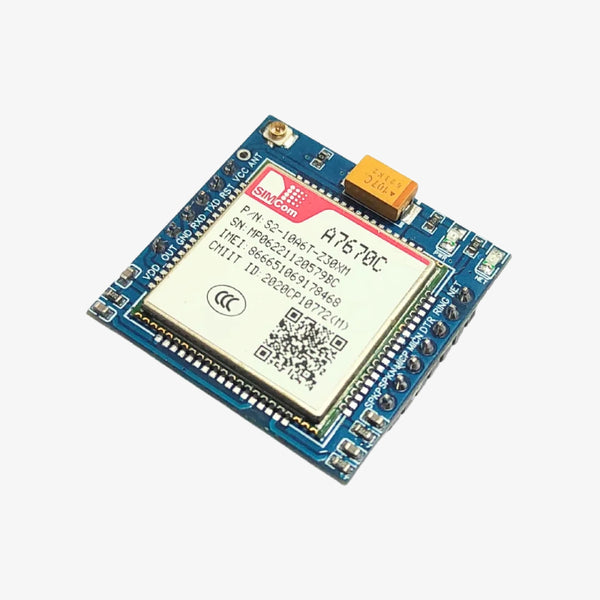

SIMA7670C 4G GSM Breakout Board

The SIMA7670C 4G GSM Breakout Board is a high-performance Cat-1 LTE development board featuring the SIMCOM A7670C 4G LTE module. It supports LTE-TDD/LTE-FDD wireless communication modes, providing reliable and fast data transfer with up to 10Mbps downlink and 5Mbps uplink speeds. The board offers a serial interface for easy communication with computers or laptops via USB to Serial adapters or TTL converters, and can be controlled using AT commands for efficient development in IoT, telecommunication, and embedded applications.Features:Supports LTE-TDD/LTE-FDD communication modesHigh-speed data transfer: 10Mbps downlink / 5Mbps uplinkSerial interface compatible with USB to Serial adapters or TTL convertersLow power consumption: 300mA max, <10mA in sleep modeSupports Windows, Linux, and Android driversOn-board SIMCOM A7670C 4G LTE chipSpecifications:Input Supply: 3.4–4.2V DCData Transfer: LTE 10Mbps downlink / 5Mbps uplinkPower Consumption: 300mA (MAX), <10mA (sleep mode)Supported Platforms: Windows 7/8/10, Linux, AndroidCommunication Mode: 4G LTEPackage Includes:1 × SIMA7670C 4G GSM Breakout Board
