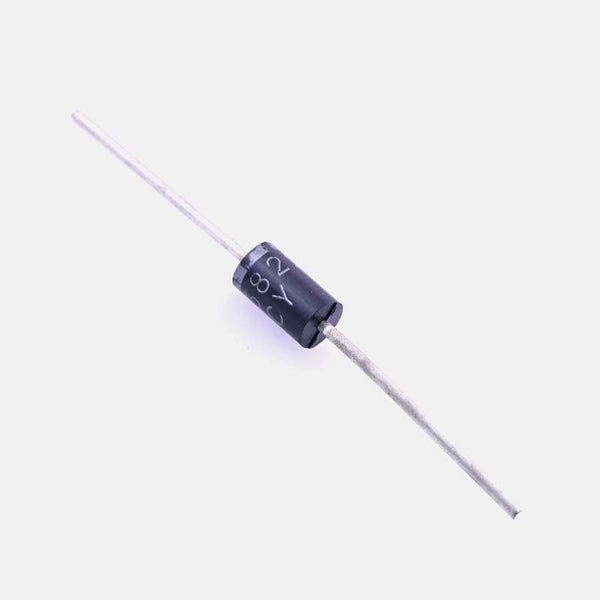

1N5822 Schottky Rectifier Diode

Schottky diodes have low forward voltage drop and fast switching speeds compared with a rectifier diode. This makes the diode to be popularly used in reverse polarity protection circuit and other time constraint switching circuits. The downside of the diode is that it has low reverse breakdown voltage. The features of the 1N5822 diode areForward Voltage drop: 0.39 @ 1AReverse Voltage: 28V (RMS)Forward Current: 3AForward surge current: 80AGuardring for overvoltage protectionVery small conduction lossesExtremely fast switchingLow forward voltage dropHigh forward surge capabilityHigh frequency operationSolder dip 275 °C max. 10 s, per JESD 22-B106Typical 1N5822 Diode Applications: Used in low voltage high frequency invertersDC-DC convertersPolarity protection applicationsPackage Includes:1 x 1N5822 Schottky Rectifier Diode

INR 6 · In stock
