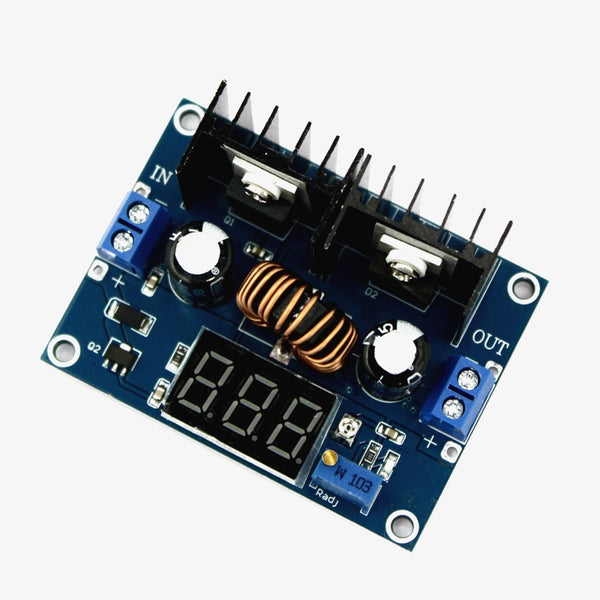

XH-M404 XL4016 DC 4-40V 8A Voltage Regulator Module With Display

The XL4016 with Display Power supply module is based on the XL4016 Dc-Dc buck converter IC. The module can step-down and regulate a voltage from 1.25V to 36V based on the position of the potentiometer. It has a 7-segment display to get the information of output voltage. The maximum output current can go as high as 8A maximum when used in open air or with Fan. It is suitable to power heavy loads upto maximum of 200W.It works with fixed 180 kHz frequency and the efficiency is quite high as 94% in normal operations below 5A of Output current. It has a built-in current limit feature along with the thermal shutdown is also available in this module. In-Built output short protection circuits are also useful for safety. It is high frequency module with 4V-40V input voltage Pin DescriptionThe below image is the overview of the XL4016 with Display 8A Module pin diagram. XL4016 with Display 8A Module Specifications:Input voltage range: 4V-40V DCOutput voltage range: 1.25V-36V DC adjustable.Output current: 0-8A.Output Power: 200WHigh efficiency upto 94%The built-in thermal shutdown functionBuilt-in current limit functionIn-Built output short protection functionDimensionXL4016 with Display 8A Module Applications:Hobby ProjectsBattery ChargingAudio grade power supply unitPSU (Buck-Converter) for applications required up to 8A of current.CNC MachinesSingle Phase Heavy Motor DrivingAdditional Resources:XL4016 DatasheetPackage Contains1x XL4016 with Display 8A Power Supply Module

INR 220 · Out of stock
