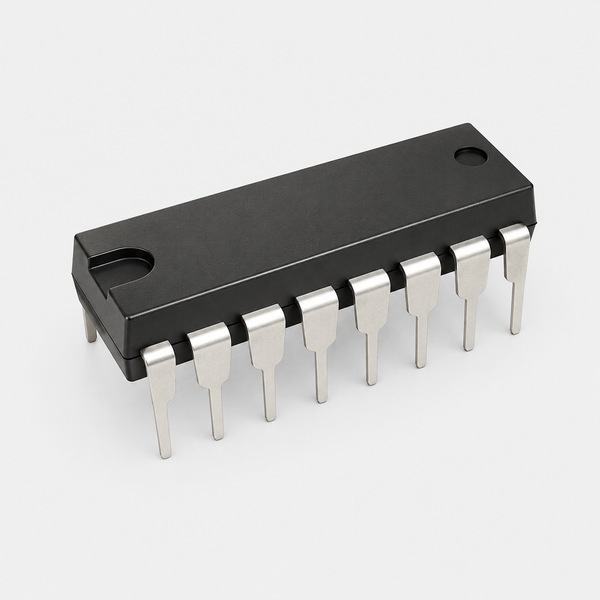

74HC193 Binary Up/Down Counter with Clear IC - DIP-16 Package

74HC193 Binary Up/Down Counter with Clear IC - DIP-16 Package is a 4-bit synchronous binary up/down counter IC designed for digital counting applications. It provides separate clock inputs for counting up and down, allowing the count direction to be controlled independently. The IC includes asynchronous clear and parallel data inputs for presetting the counter, making it suitable for frequency division, digital counters, sequencing circuits, control systems, and other digital logic applications.Features:4-bit synchronous binary up/down counter.Separate clock inputs for up-counting and down-counting.Asynchronous clear input.Parallel data inputs for presetting the counter.Four parallel counter outputs.Cascadable for higher-bit counting applications.High-speed CMOS logic operation.Wide supply voltage range.Through-hole DIP-16 package for breadboard and PCB mounting.Specifications:ParameterValueProduct Type4-Bit Binary Up/Down CounterModel74HC193Logic FunctionSynchronous Up/Down CounterCounter Resolution4 BitCounting Range0 to 15Up ClockYesDown ClockYesClear InputAsynchronousParallel LoadYesLogic Family74HCSupply Voltage2 V to 6 VOutput TypePush-PullOperating Temperature-40°C to +125°CPackageDIP-16 / PDIP-16Mounting TypeThrough HolePin Configuration:Pin No.Pin NameDescription1BParallel Data Input B2QBCounter Output B3QACounter Output A4DOWNDown-Count Clock Input5UPUp-Count Clock Input6QCCounter Output C7QDCounter Output D8GNDGround9LOADParallel Load Input, Active LOW10AParallel Data Input A11BParallel Data Input B12CParallel Data Input C13DParallel Data Input D14CLEARAsynchronous Clear Input15BOBorrow Output16VCCPositive Supply VoltageAlso Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 × 74HC193 Binary Up/Down Counter with Clear IC - DIP-16 Package

INR 23 · In stock
