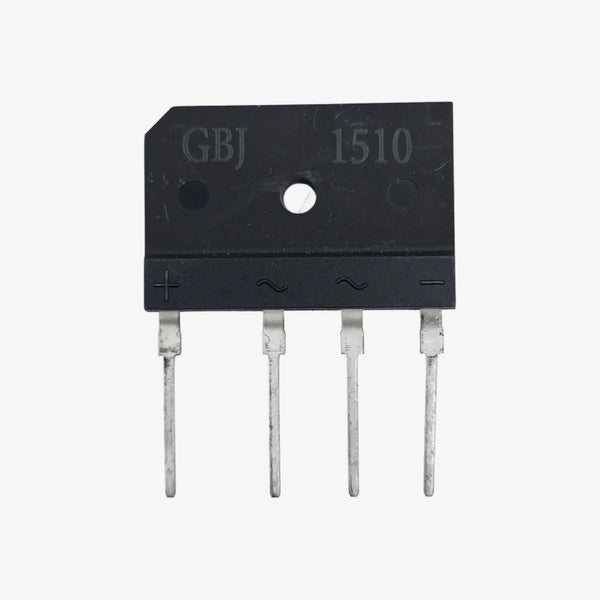

GBJ1510 15A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

The GBJ1510 Bridge Rectifier 15A is a robust through-hole rectifier designed for high-efficiency AC to DC conversion in power supplies and control circuits. Its glass-passivated die and molded plastic body provide excellent thermal conductivity and mechanical strength. Ideal for adapters, chargers, and industrial power modules requiring reliable rectification.Features:High forward current capability up to 15ABuilt-in PCB stand-offs for easy mountingUL-recognized construction with 94V-0 flame-retardant bodyHigh surge current capacity up to 220ASupports high-temperature soldering up to 260°C for 5 secondsSpecifications:Average Forward Current (IF(AV)): 15A (with heatsink at TC = 100°C)Average Forward Current (IF(AV)): 3.2A (without heatsink)Peak Repetitive Reverse Voltage (VRRM): 1000VRMS Voltage (VR(RMS)): 700VDC Blocking Voltage (VDC): 1000VPeak Forward Surge Current (IFSM): 220A (8.3ms half-sine wave)Forward Voltage (VF): 1.1V at IF = 7.5A DCReverse Current (IR) at 25°C: 10µAReverse Current (IR) at 125°C: 500µAThermal Resistance Junction-to-Case (RθJC): 1.5°C/WOperating Junction Temperature (TJ): -55°C to +150°CStorage Temperature (TSTG): -55°C to +150°CPackage Includes:1 × GBJ1510 15A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

INR 41 · In stock
