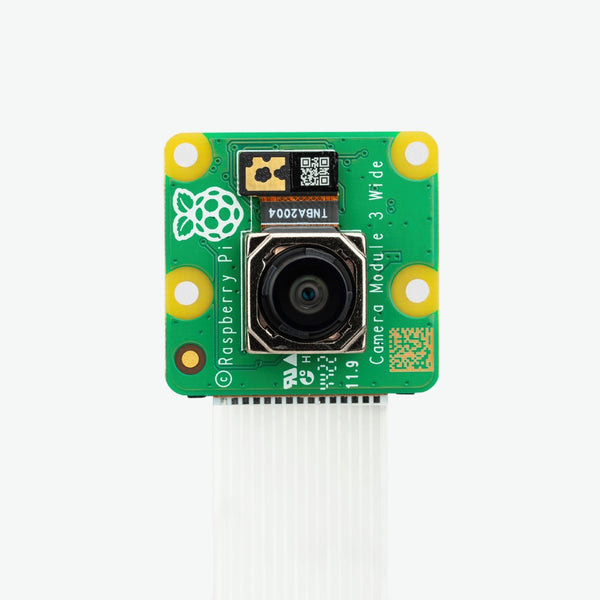

Raspberry Pi Camera Module 3 Wide

The Raspberry Pi Camera Module V3 is a compact, high-performance camera featuring a Sony IMX708 12-megapixel sensor with HDR capabilities and phase detection autofocus. Available in both standard and wide-angle variants, the Camera Module 3 can be purchased with or without an infrared cut filter (NoIR).Designed for versatility, the Camera Module 3 supports full HD video recording and still photography, with an HDR mode available up to 3 megapixels. The module is fully supported by the libcamera library, including rapid autofocus functionality, making it user-friendly for beginners while offering advanced features for experienced users. It is compatible with all Raspberry Pi models.The Camera Module 3 maintains the same PCB size and mounting holes as its predecessor, the Camera Module 2, but is slightly taller due to its improved optics.Features12-megapixel back-illuminated and stacked CMOS sensor (Sony IMX708)High signal-to-noise ratio (SNR)2D Dynamic Defect Pixel Correction (DPC)Phase Detection Autofocus (PDAF) for quick and accurate focusingQBC Re-mosaic functionHDR mode with up to 3-megapixel outputCSI-2 serial data output2-wire serial communication (I2C fast mode and fast-mode plus)2-wire serial control for autofocus mechanismSpecificationsSensor: Sony IMX708, 11.9 megapixelsSensor size: 7.4mm diagonalPixel size: 1.4μm × 1.4μmImage resolution: 4608 × 2592 pixelsVideo modes:1080p at 50fps720p at 100fps480p at 120fpsOutput format: RAW10IR cut filter: Integrated in standard variants, absent in NoIR variantsAutofocus: Phase Detection Autofocus (PDAF)Dimensions: 25 × 24 × 11.5mm (12.4mm height for wide-angle variants)Ribbon cable length: 200mmCable connector: 15 × 1mm FPCOperating temperature: 0°C to 50°CCompliance:FCC 47 CFR Part 15, Subpart B, Class B Digital DeviceEMC Directive 2014/30/EURoHS Directive 2011/65/EUProduction Lifetime The Raspberry Pi Camera Module 3 will remain in production until at least January 2030.This camera module is perfect for various applications, from home security and wildlife observation to professional photography projects, offering excellent image quality and fast autofocus.
